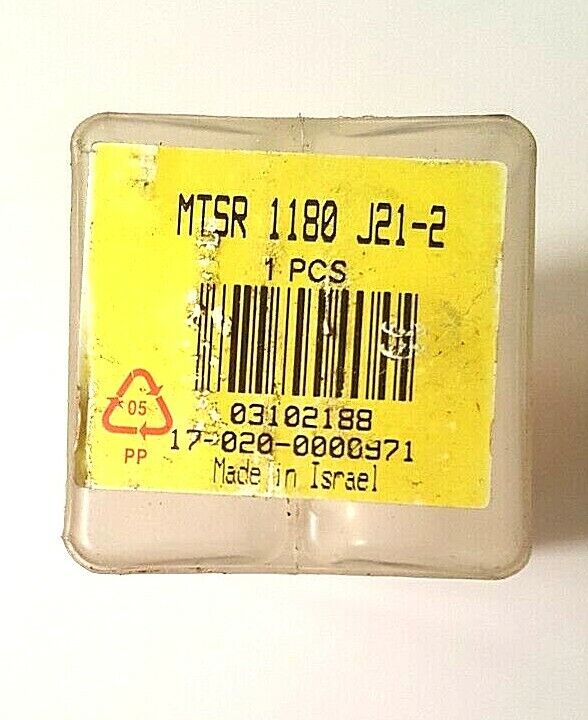

Iscar 1-1/8" MILLTHREAD, 1" Shank MTSR 1180 J21-2 + 1set 14 & 2sets 16 TPI Inser

Name: Iscar 1-1/8" MILLTHREAD, 1" Shank MTSR 1180 J21-2 + 1set 14 & 2sets 16 TPI Inser
Brand: Iscar
SKU: MTSR 1180 J21-2
Price: 199.00 USD
Availability: InStock

$199.00 USD

Sale Sold out

Quantity

This ISCAR MILLTHREAD MTSR 1180 J21-2 is 1-1/8" Diameter with a 1" Weldon Style Shank. It is very slighly used and in Excellent Condition. It comes with a 2 pc.set of Used 14 TPI inserts and what we believe are 2 - New 2 pc.sets of 16 TPI inserts Model #'s MT21 E 16 UN IC928. We believe these inserts are for External Threading.

SR 1180 J2 12 Product Description: STEEL IN-SHANK HOLDER W-COOLANT FOR INT&EXT-RH&LH 21mm (0.827") MILLING INSERTS; SHANK D: 1.000"; OAL: 04.250" (~107.95mm); NECK LEN: 1.970" (~50.04mm); CUT D: 1.180" (~29.97mm); NECK D: 0.950" (~24.13mm); SCRW: S21; KEY: K21; #INS: 2

Cutting Diameter of 1-1/8”

1” Weldon Style Shank with a through Coolant Hole

Maximum Cutting depth of 0.827”

Overall Length of 4-1/4”

2 Flute

Insert Width 0.496" Carbide TiAIN Coated
